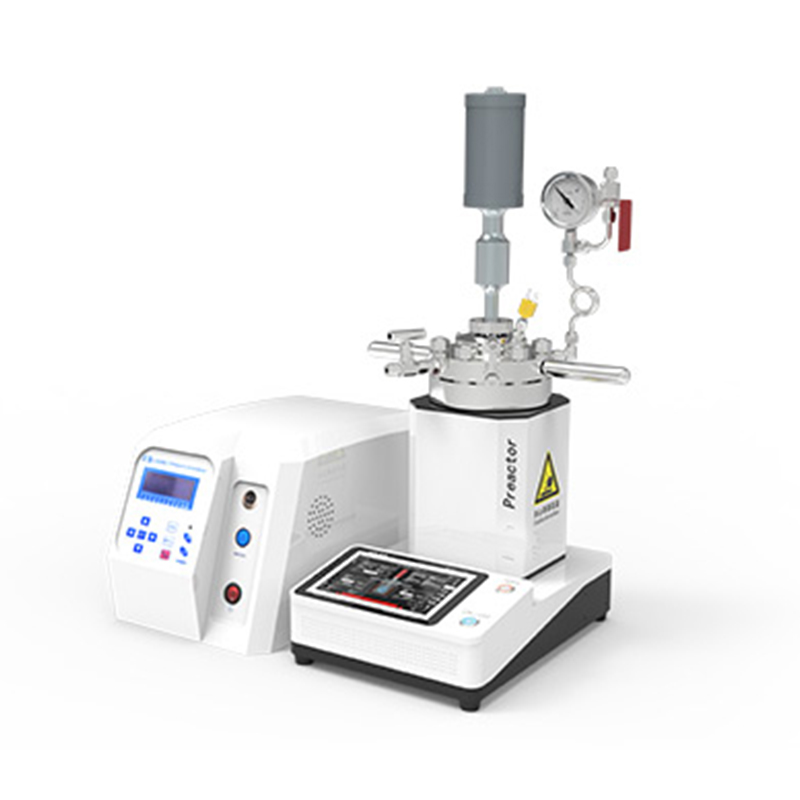

Pressure Ultrasonic Reactor

Pressure Ultrasonic Reactor is applied for various ultrasonic extraction, ultrasonic catalysis, ultrasonic micro reaction, ultrasonic high-pressure synthesis, ultrasonic crushing, ultrasonic separation, hydrogenation, gas-liquid two-phase, liquid-liquid two-phase, exothermic reaction and fine chemical industry. It is widely used in nano industry, biology, petrochemical industry, chemistry, pharmacy, polymer synthetic dyes, jewelry, aerospace, metallurgy, automobile manufacturing and other fields.

Узнать сейчас Следующий продукт

Features

High temperature, high pressure, ultrasonic reaction;

High temperature, high pressure, ultrasonic extraction;

High temperature, high pressure, ultrasonic catalysis.

Chinese medicine extraction, cell, bacterial, viral tissue breakdown.(e.g. extraction of cell inclusions)

Dispersion and homogenization of particles and emulsification of products.(Dispersion of nanomaterials, silica, carbon dioxide, carbon nanotubes, graphene.,etc.)

Faster dissolution, faster chemical reactions.(e.g. for chemical synthesis)

High temperature, high pressure, ultrasonic extraction;

Technical Parameters

Model	EUR-100mL	EUR-300mL	EUR-500mL
Volume	100mL	300mL	500mL
Pressure	2~10MPa
Material	Titanium Alloy Material
Piezoelectric Frequency Conversion Energy Converter	CV33, PZTLead zirconate titanate piezoelectric ceramics diameter: 44mm, Length: 152mm
Timing	PID PLC LCD, 1s~99h adjustable
Ultrasonic Mode	Pulse Mode/ Continuous Mode
Power Regulation	0%~ 100%, 5%increasing
Frequency	20KHZ
Power Supply	AC 1Ψ110V;AC 1Ψ 220V;3Ψ 380V 60/50Hz
