Supercritical Carbon Dioxide Drying Plant

Drying Vessel parameters required: 100 bar, 250 degrees Celsius, carbon dioxide flow meter (according to manufacturer's parameters) and liquid pump.

Reactor utilizing supercritical CO₂and the volume is 500ml.In addition to many years experiences and all the conforming with ASME CODE, that ensures the safety.

Узнать сейчас

Technical Parameters

Extraction Vessel	500mL*1 SetMax working condition:100 bar at 250℃ or 350kgf/cm2 at 80℃
Separate Vessel	300mL*2 Set
CO₂Storage Vessel	500mL*1 Set
CO₂High Pressure Pump	Max Flow Rate: 100mL/Min
Co-Solvent Pump & System	Max Flow Rate: 12mL/Min
Recycle System	Filtering Vessel Systems
Temperature Utility	Chiller & Heating Bath System
Control System	Touch Panel Type
Structure	Packing Type

Featrue

Safety

Design based on ASME

Certified by ASME

Safety device

Convenience maintenance through the alarm list

Convenience

Design based on ASME

Certified by ASME

Safety device

Convenience maintenance through the alarm list

Control system

Touch screen to control & monitor

DAQ and Auto system control

Process variables

Temperature

Stability by circulating system of heating carrier

Cooling and heating graded control

Pressure

"Accuracy 1.5% by controlling back pressure regulator"

Accurate back pressure regulator

TEST

Various test according to different test materials

Не можете найти то, что искали?

Вам нужно индивидуальное решение?

ПОЛУЧИТЕ БОЛЬШЕ ИНФОРМАЦИИ ЗДЕСЬ

Связанный Продукты

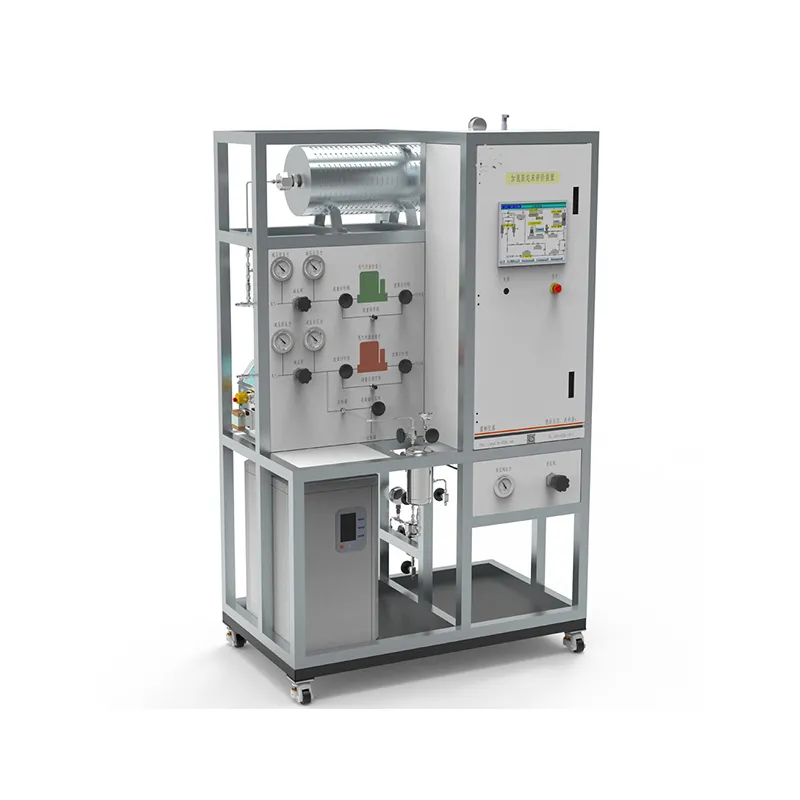

50mL Fixed Bed Catalyst Evaluation Reactor Technical Proposal
